【FEATURES】

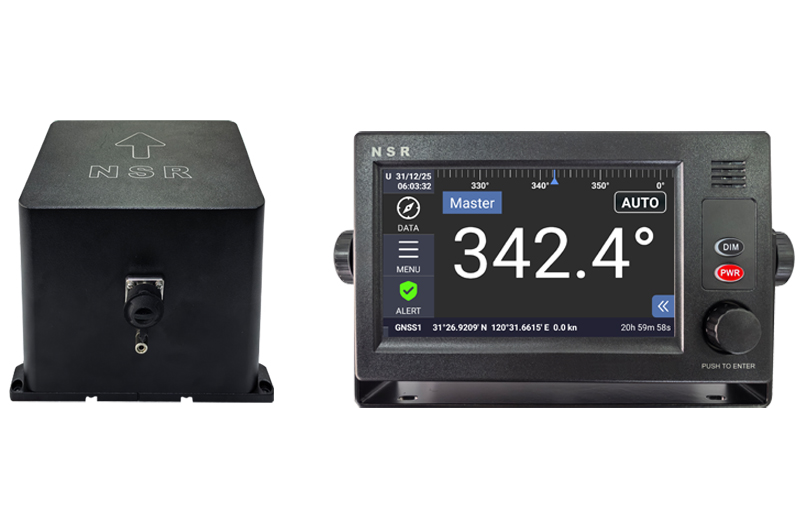

NSR's new products of Fiber Optic Gyrocompass:
- 4 models with heading accuracy up to ≤ 0.1°x secφ.
- Short settling time and flexible operating modes.
- Advanced optical technology and signal processing algorithms adopted.
- Highly accurate HDG.
- Large 7-inch color LCD.
- Touch screen operation.
- Data interface to BAM/INS.
- Multi-outputs of RS422.
- Maintenance-free design.
- Suitable for HSC.
- Compliant with the standards of IMO A.424 (XI), IMO A.821 (19), IMO A.694 (17), ISO 8728:2024 and ISO 16328:2014, etc.
- DNV type approval.
【SPECIFICATIONS】
| Settling Time | 10 min |
Heading Accuracy | NGC-5010: ≤0.1° secφ NGC-5030: ≤0.3° secφ NGC-5050: ≤ 0.5° secφ NGC-5070: ≤0.7° secφ |
Power Supply | AC 220V, DC 24V |
Power Consumption | ≤55W |
| Display | 7-inch, color LCD, touch screen operation, Android O/S 154 (W) × 87 (H) mm, 1024 × 600 dots resolution |
| Interface | External Compass, Repeater, Heading Out, Sensor Input, Alarm System, BAM/INS, Printer, RJ45 |
| Ambient Temperature | -20°C ~ +55°C operational |
| Compass Safe Distance | Standard: 0.30m, Steering: 0.05m (Compass Unit) Standard: 0.35m, Steering: 0.20m (Interface Unit) Standard: 0.25m, Steering: 0.10m (Display Unit) Standard: 0.25m, Steering: 0.15m (Remote Unit) Standard: 0.45m, Steering: 0.30m (Rot Indicator) Standard: 0.55m, Steering: 0.35m (Steering Repeater) Standard: 0.45m, Steering: 0.25m (Bearing Repeater) |
| IP Grade | IPX6 (for NGC-519), IP22 (for other items) |
