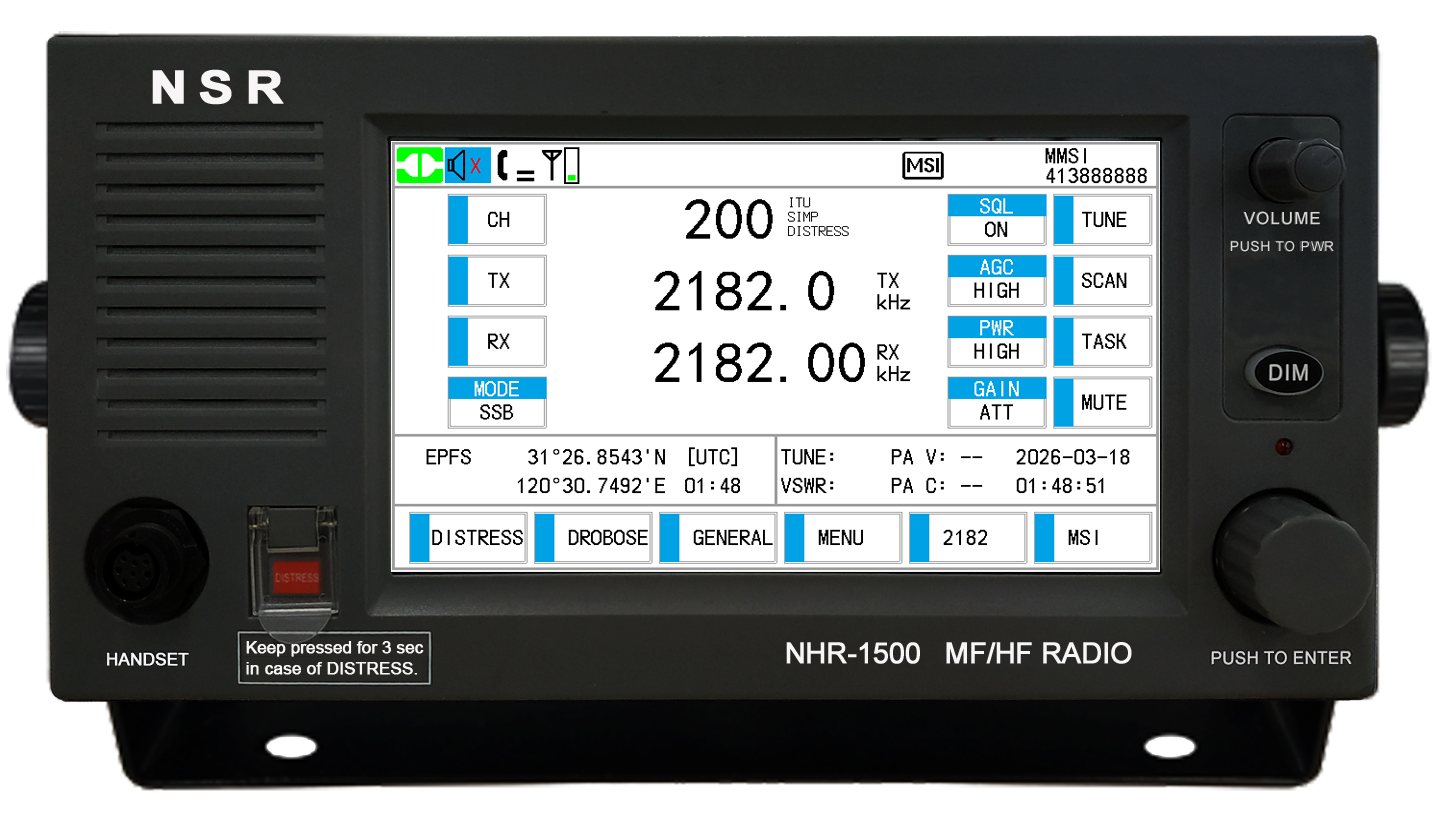

NHR-1500 MF/HF RADIO

Published on: 2020-09-11

【FEATURES】

- Capable of voice communication and DSC (digital selective calling) facilities as well.

- Conforming to Class A standard set for MF/HF DSC by ITU and IMO regulation.

- Can be part of onboard GMDSS package for vessels of A2, A3 and A4.

- Large 7-inch color display.

- Knob & touch screen operation.

- Data interface to BAM System/INS.

- LAN network interface.

- Software radio technology.

- Voice digitalized.

- Conforms to the regulations of ITU-R M.476-5, ITU-R M.492-6, ITU-R M.493-15, ITU-R M.541-10, IMO M302 (87), IEC 61097-9, IEC 61097-3, IEC 60945, IEC 62923-1, IEC 62923-2.

- CCS type approval.

- DNV-GL type approval.

- VR type approval.




image.png 1601167938800219.jpgNHR-1500-NBDP英文 20210603副本.png


【SPECIFICATIONS】

 TX Frequency:      1605.0-27500.0 kHz
 RX Frequency:   300.0-29999.99 kHz
 Working Channel:  400+ channels
 Communication Mode:  Simplex/Semi-duplex
 Emission Class: J3E, H3E, A1A, F1B
 TX Power: 150W pep
 RX Sensitivity:

 J3E:≤2.5 µV(1605.0 - 27500.0 kHz)

 F1B:≤0.7 µV(1605.0 - 27500.0 kHz)

 A1A:≤1.4 µV (1605.0 - 27500.0 kHz)

 DSC frequencies (kHz):   2187.5, 4207.5, 6312.0, 8414.5, 12577.0, 16804.5
 Control Display: 7-inch color display, touch screen
 Interface: LAN, BAM/INS (RS422), GNSS (RS422)
 Antenna Impedance: 50 Ω
 IP Grade: IP22: Control unit, Transceiver, Handset
 IP66: Antenna coupler
 Operating Temperature: -15° to 55°C (indoor parts)
 -25° to 55°C (outdoor part)
 Power Supply: DC24V


NSR NHR-1500 MF HF RADIO BROCHURE.pdf
